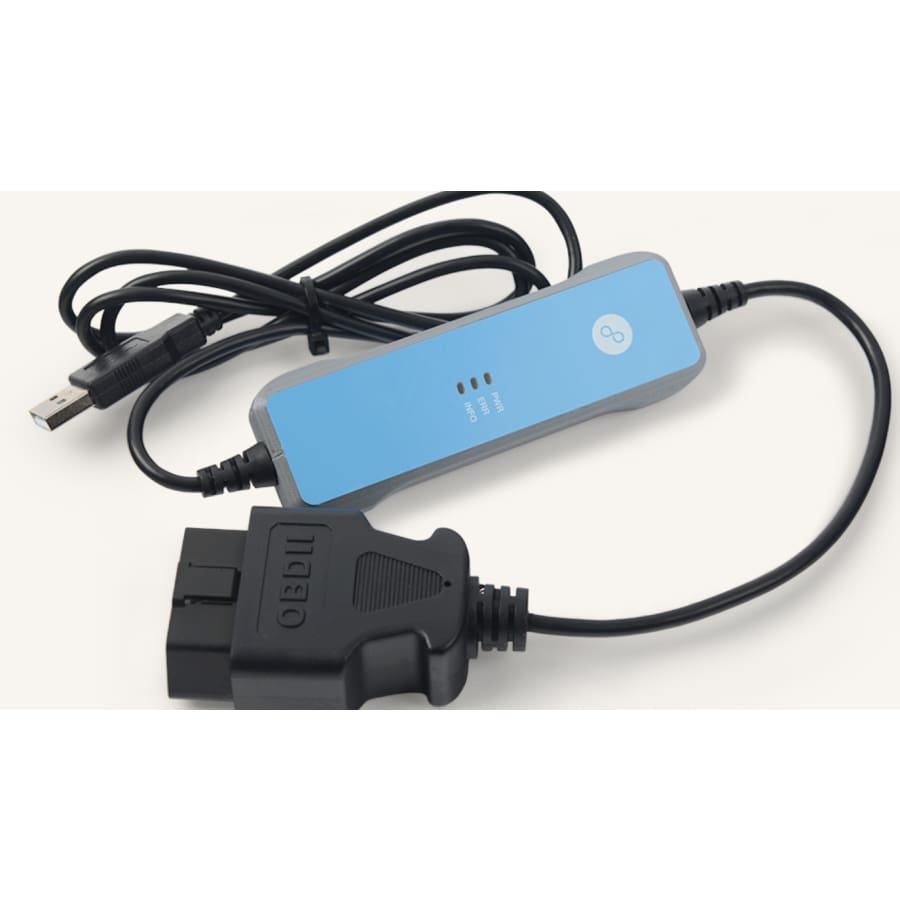

Korlan USB2CAN with OBD2
Korlan offers loss-less and extremely accurate communication at a price points not available before. With USB2CAN you can monitor a CAN network, write a CAN program and communicate with industrial, medical,
automotive or another type of CAN bus network devices.
Specifications:
CPU: ARM 32bit Cortex-M0 (STM32F072)
Electrical isolation: Galvanic isolation 2.5kV
Interface speed: USB 2.0 Full speed (12 Mbps)
CAN specifications compliance: 2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus baud rate: 20-2000 Kbit/s user definable speed
Firmware upgrade: Via bootloader, USB DFU protocol
Simultaneous use quantity: Up to 4 USB2CAN converters can be connected for simultaneous use on a single PC
LED status indications: Power, Error, Info
Available drivers: Drivers for Windows XP, Windows Vista, Windows 7, Windows 10, Linux (SocketCAN)
Supported library: Open source CANAL API DLL for Windows
3rd party protocol support: Open source CANAL API DLL for Windows
Testing modes: Silent and loopback
Downloads:
Device Documentation:
Windows Drivers and Tools
Windows 32-bit (XP, Vista, Win7, Win8, Win10) USB driver v1.0.2.1
Windows 64-bit (XP, Vista, Win7, Win8, Win10) USB driver v1.0.2.1
CANAL (CAN Abstraction Layer) DLL v1.0.6 (32 bit)
CANAL (CAN Abstraction Layer) DLL v1.0.14 (32/64 bit)
CANAL (CAN Abstraction Layer) API description
Linux Drivers and Tools
Korlan USB2CAN Linux driver (Github repository)
