MoRFeus

$199.00

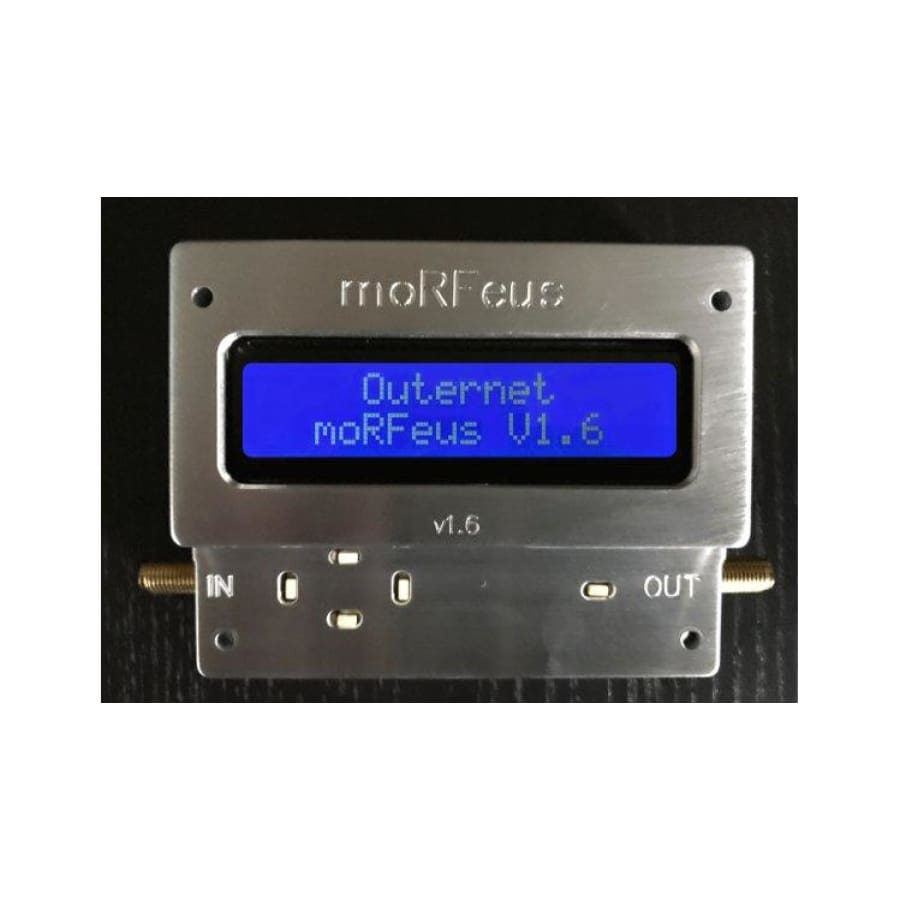

MoRFeus - A field-configurable wideband frequency converter and signal generator - Electronics
MoRFeus - A field-configurable wideband frequency converter and signal generator - Electronics MoRFeus - A field-configurable wideband frequency converter and signal generator - Electronics

MoRFeus is a 30 MHz–6 GHz field-configurable Fractional-N wideband frequency converter and signal generator. Its LCD display and button interface enable dynamic field-level configuration - from switching between signal generator and other modes, to setting the local oscillator frequency and more. It was designed for wideband frequency up- and down-conversion - with an LO frequency range of 85 MHz–5.4 GHz and input/output frequency range of 30 MHz–6 GHz

MoRFeus is small, lightweight, and functional. It was designed for low spurious emissions and is packaged in a precision-milled aluminum enclosure.

Use cases for moRFeus are many

  • Wideband radios
  • Distributed antenna systems
  • Diversity receivers
  • Software-defined radios
  • Frequency band shifters
  • Point-to-point radios
  • WiMax/LTE infrastructure
  • Satellite communications
  • Wideband jammers
  • Remote radio heads
  • Frequency up/down conversion
  • Automated test equipment (ATE)
  • Wireless communication systems

How it works

MoRFeus integrates into popular RF environments using SMA connectors and is powered using an external micro-USB 5 V supply. The LCD display and button interface provide a dynamic way to program the mixer LO frequency in the field with a step size of 1.5–3 Hz*. Dynamic toggling between mixer and generator modes adds to field-level functionality. An optional bias voltage of 5 V is available via RF choke to the mixer input to supply active antenna systems. The device is also USB HID programmable, enabling automatic operation from a PC running Windows or Linux.

Features

  • RF input frequency: 30 MHz–6 GHz
  • RF output frequency: 30 MHz–6 GHz
  • LO frequency: 85 MHz–5400 MHz
  • Fractional-N synthesizer
  • LO step size: 1.5–3 Hz*
  • USB programmable (Windows or Linux)
  • Generator/mixer function toggle
  • Small, portable form factor
  • Adjustable mixer bias current
  • LCD display With backlight
  • Button control interface

General Specifications

  • Input voltage: 5 V
  • ESD protection (RF IN and OUT ports): IEC 61000-4-2 contact discharge, 8 KV
  • Bias voltage: 5 V
  • Active bias current protection: 425 mA
  • Mixer input/output isolation: see mixer performance
  • Input IP3: +23 dBm
  • RF/IF input absolute maximum power: +15 dBm
  • Operating temperature -40 to +85
  • Storage temperature range -65 to +150
  • Dimensions: 88 mm x 38 mm x 68 mm
  • Weight: 7.4 oz

*Step size is frequency-dependent. Lower step sizes (1-2 Hz) are characteristic of lower frequency domains and higher step sizes (2-3 Hz) of higher domains.

Synthesizer

LO Phase Noise (dBc/Hz) Offset
1 GHz -108 10 kHz
1 GHz -107 100 kHz
1 GHz -135 1 MHz
2 GHz -102 10 kHz
2 GHz -101 100 kHz
2 GHz -130 1 MHz
3 GHz -98 10 kHz
3 GHz -98 100 kHz
3 GHz -125 1 MHz
4 GHz -96 10 kHz
4 GHz -95 100 kHz
4 GHz -124 1 MHz
Mixer Performance
LO Input Power Input Frequency Output Frequency Output Power Conversion Gain
400 2.47 500 100 -8.95 -11.42
400 -1.894 1000 600 -10 -8.106
400 -9.65 1500 1100 -25 -15.35
400 -10.27 2000 1600 -28.1 -17.83
400 -11.112 2500 2900 -28.4 -17.288
850 -.073 900 50 -12.04 -11.31
1500 -10.757 2400 900 -20.24 -9.483
2400 -9.65 1500 900 -25.5 -15.85
4000 -1.894 1000 3000 -21.3 -19.406
4000 -15.4 5400 1400 -37.3 -21.9

Mixer Current

moRFeus offers an optional mixer current control which impacts the linearity of the output signal. The controls are exposed for advanced users to experiment and fine tune mixer performance.

Generator Mode

In generator mode, the output port of moRFeus is set to the LO frequency. It has a range limited by the internal LO which is 85 Mhz to 5.4 GHz (it should be noted that the mixer input handles frequencies up to 6G Hz). Generator mode can be used to generate arbitrary CW signals for testing or mixing purposes.

A plot of Output Power versus Mixer Current Setting

In generator mode, output power changes relative to the mixer current setting. When the mixer current is set to 0, output power is relatively low. For settings 1-7, output power is stronger. This chart plots output power relative to the mixer current setting.

Output Power vs Mixer Current setting (generator mode)

MoRFeus - A field-configurable wideband frequency converter and signal generator

Device Information

MoRFeus - A field-configurable wideband frequency converter and signal generator

Comparisons

Outernet moRFeus Signal Hound VSG25A Vector Signal Generator RF Explorer Signal Generator (RFE8GEN) Mini-circuits ZX05-63H-S+ (Mixer) Windfreak MixNV (Mixer + Signal Generator)
RF Input Frequency Range 30 MHz-6 GHz N/A N/A 750 MHz-6 GHz 1 MHz-6 GHz
RF Output Frequecy Range 30 MHz-6 GHz 100 MHz-2.5 GHz 24 MHz-6 GHz DC-1 GHz 1 MHz-6 GHz
LO Frequency Range 85 MHz-5.4 GHz N/A N/A 750 MHz-6 GHz 85 MHz-5 GHz
Frequency Resolution 1.5–3 Hz¹ < 1 Hz 1 KHz N/A 1 Hz
Phase noise at 1 GHz and 10 kHZ offset -108 dBc/Hz -88 dBc/Hz N/A N/A -108 dBc/Hz
Frequency up/down Converter Yes No No Yes Yes
Signal Generator Yes Yes Yes No Yes
Field-configurable Yes No Somewhat No No
User Interface Button/LCD display and software-programmable Windows PC VSG25A software required LCD Display and RF Explorer for Windows PC client N/A Software-programmable, Windfreak software w/ Labview GUI
Bias Current Available Yes No No No No
RF In/Out Connectors Yes, SMA Out, SMA Out, SMA Yes, SMA Yes, SMA
Power Input Connector micro-USB USB Type B mini-USB N/A mini-USB
Stand-alone Signal Generator Yes ² No ³ Yes No No ³
Stand-alone Frequency Converter Yes No ⁴ No ⁵ No ⁶ No ³
Price $149 $495 $189 $53 $499
Notes: 1. step size is frequency-dependent, see datasheet 2. uncalibrated amplitude, see datasheet 3. requires PC 4. requires PC + mixer 5. requires mixer 6. requires LO and signal generator
