StereoPi
StereoPiStereoPi
$109.00$89.00
  • Powerful ARM processor for AI and computer vision algorithms

  • Compact size for easy integration

  • Native two cameras support for stereo vision

  • Painless software ecosystem

  • PRODUCT OVERVIEW
  • FEATURES & SPECIFICATIONS
  • ACCESSORIES & KITS

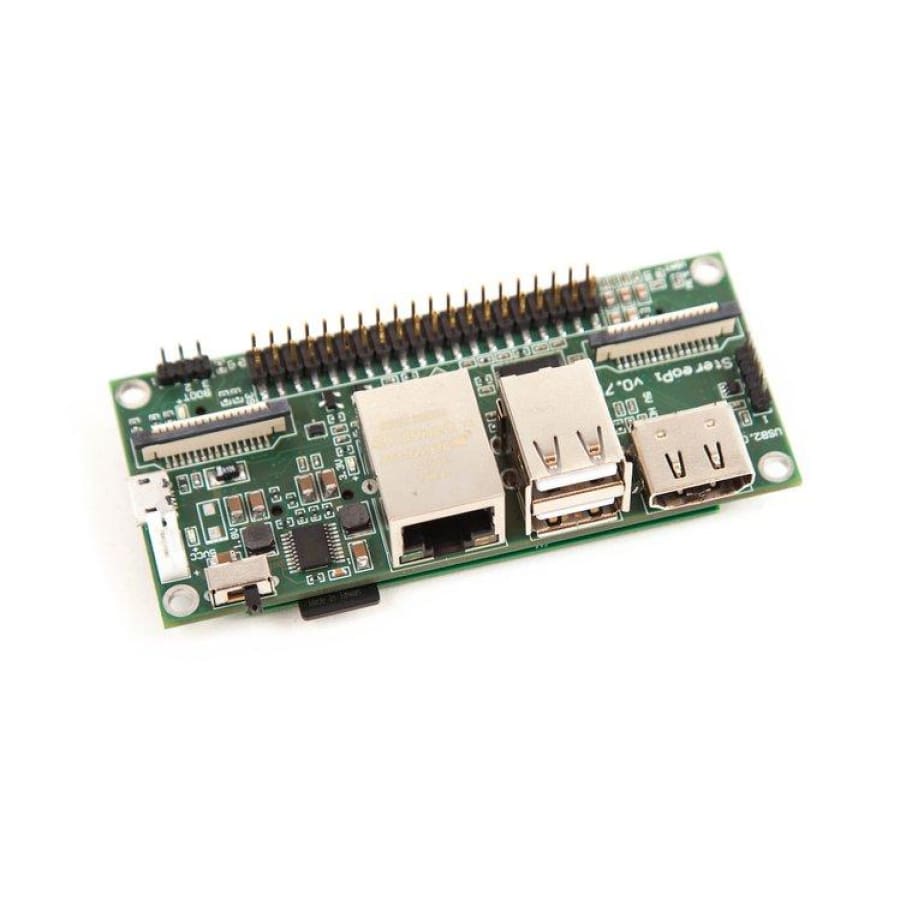

StereoPi is an open source stereoscopic camera based on Raspberry Pi. It can capture, save, livestream, and process real-time stereoscopic video and images. StereoPi opens up countless possibilities in robotics, AR/VR, computer vision, drone instrumentation, panoramic video, and more.


The world of stereoscopic video awaits! This board is the ultimate interface between two cameras and a Raspberry Pi Compute Module. It comes with all the bells and whistles, including Ethernet, dual USB ports, GPIO header, microSD slot, HDMI output, and more. To use this board, you will need your own Raspberry Pi Compute Module, cameras, and camera ribbon cables. Two short power cables already included.

Raspberry Pi Compatibility:


 -Raspberry Pi Compute Module1

-Raspberry Pi Compute Module 3

-Raspberry Pi Compute Module 3

-LiteRaspberry Pi Compute Module 3+ 8 GB / 16 GB / 32 GB eMMC flash

-Raspberry Pi Compute Module 3+ Lite


Dimensions:width x length: 90 mm x 40 mm

height: 23 mm (standard edition) / 15 mm (slim edition)


Video:

-input: two 15-pin CSI-2 camera connectors

-output: HDMI


Camera Support:

-Raspberry Pi camera V1 (OV5647 sensor)

-Raspberry Pi camera V2 (Sony IMX 219 sensor)

-HDMI video capture module (single mode, on Toshiba TC358743XBG chip)


Connectivity:

-GPIO: 40-pin classic Raspberry Pi header

-USB: 2 x USB Type-A, 1 x USB pin header

-Ethernet: RJ45 jack


Storage:microSD card slot (accessed by Raspberry Pi CM3/3+ Lite)


Power:

-5 VDC input via two-pin header

-manual power switch


Software:

-firmware update via Micro USB connector

-runs standard Raspbian

-excellent Python support

-tons of example code

In addition to the StereoPi boards themselves, we’re offering a variety of accessories and kits so you can tailor StereoPi to your needs.

  • Lower cables
  •  Raspberry Pi-compatible camera V1
  • Waveshare “G” wide-angle (160°) camera
  • Short camera ribbon cable
  • Mounting plate for two V1/V2 Raspberry Pi cameras
  • Mounting plate for two wide-angle Waveshare Raspberry Pi cameras
  • StereoPi Starter kit
