  • power and flexibility of custom digital logic designs

  • allows you to design and implement your own digital logic

  • can implement the exact peripheral devices

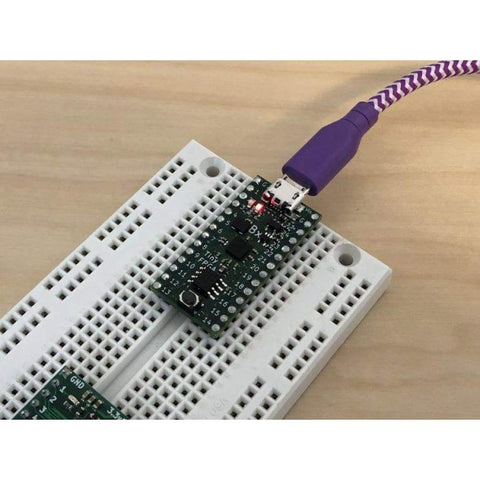

  • Small form-factor is breadboard friendly

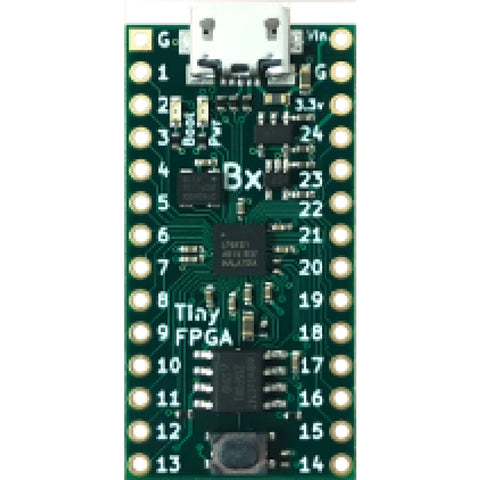

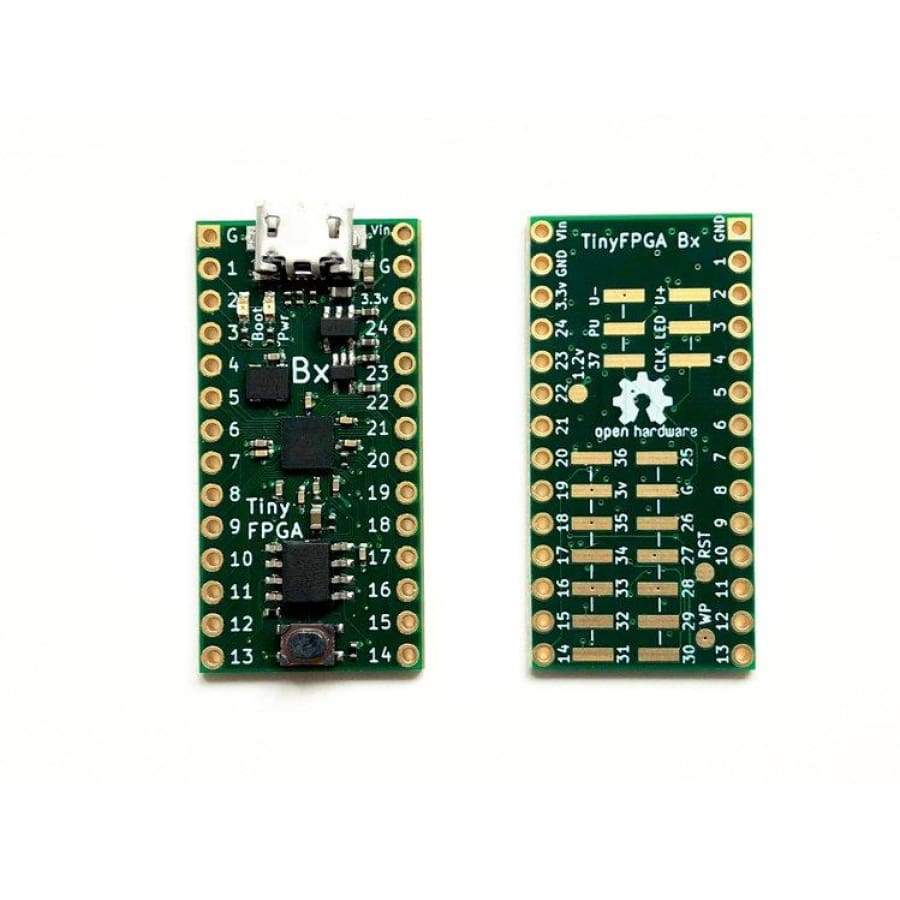

The TinyFPGA BX is a small FPGA module with all of the components and circuitry required for the FPGA to function taken care of for you. To develop for the board you create a design in your favorite digital design language (Verilog/VHDL, Migen, and Chisel are some popular options).

Alternatively, you can use a schematic entry tool like IceStudio. A schematic entry tool allows you to graphically draw a digital circuit to be implemented on the FPGA.Once you have a design, you can program it onto the TinyFPGA BX module over USB. All the functions your design implements will now be able to interface with the outside world through the module’s IO pins.

The TinyFPGA boards are a new series of low-cost, open-source FPGA boards in a tiny form factor. Solder on pins for use in a breadboard or PCB socket; or solder connectors, wires, and components directly onto the board.

  • Height: 1.4 inches, width: 0.7 inches
  • Programming interface: USB 2.0 full-speed (12 mbit/sec)

- 7,680 four-input look-up-tables

-128 KBit block RAM

- Phase Locked Loop

- 41 user IO pins

  • 8 MBit of SPI Flash
  • Onboard 3.3 V (300 mA) and 1.2 V (150 mA) LDO regulators
  • Low-Power 16 MHz MEMs Oscillator

- 1.3 mA power when active

- 50 ppm stability

Small form-factor is breadboard friendly

There’s plenty of space on either side for connecting jumpers or components. There is no smaller FPGA board available with this many logic resources!

Open source bootloader

Forget proprietary and expensive USB interface chips, the TinyFPGA BX implements its own open source USB bootloader! Upon power-up, USB bootloader is loaded from SPI flash and becomes active. It appears on the host computer as a virtual serial port device. The programmer software automatically detects the board and uses the serial interface to program your design onto the board. Once your design is loaded in the SPI flash, the board reboots and loads your design without the bootloader. To update your design just press the reset button and the bootloader will be activated again.

High-quality PCB design

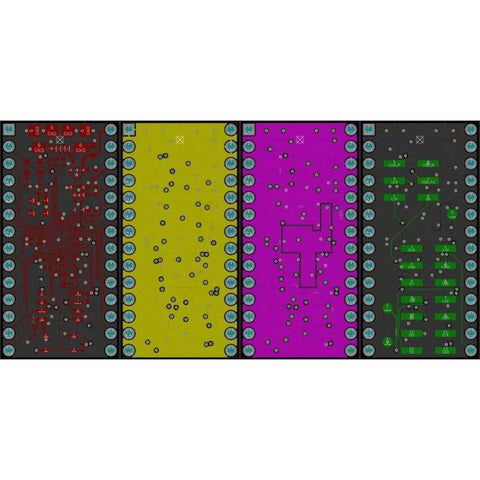

The TinyFPGA BX improves upon the previous B2 model in every aspect and the PCB layout is no exception. In addition to nearly doubling the number of user IOs, the new PCB layout also an improved PCB layout and power delivery:

1. Four-layer PCB with dedicated ground and power planes

2. Six external ground connections (including the USB connector)

3. Power distribution and decoupling capacitors implemented by the book for all ICs, including bulk capacitance and ferrite bead filtering for the board.

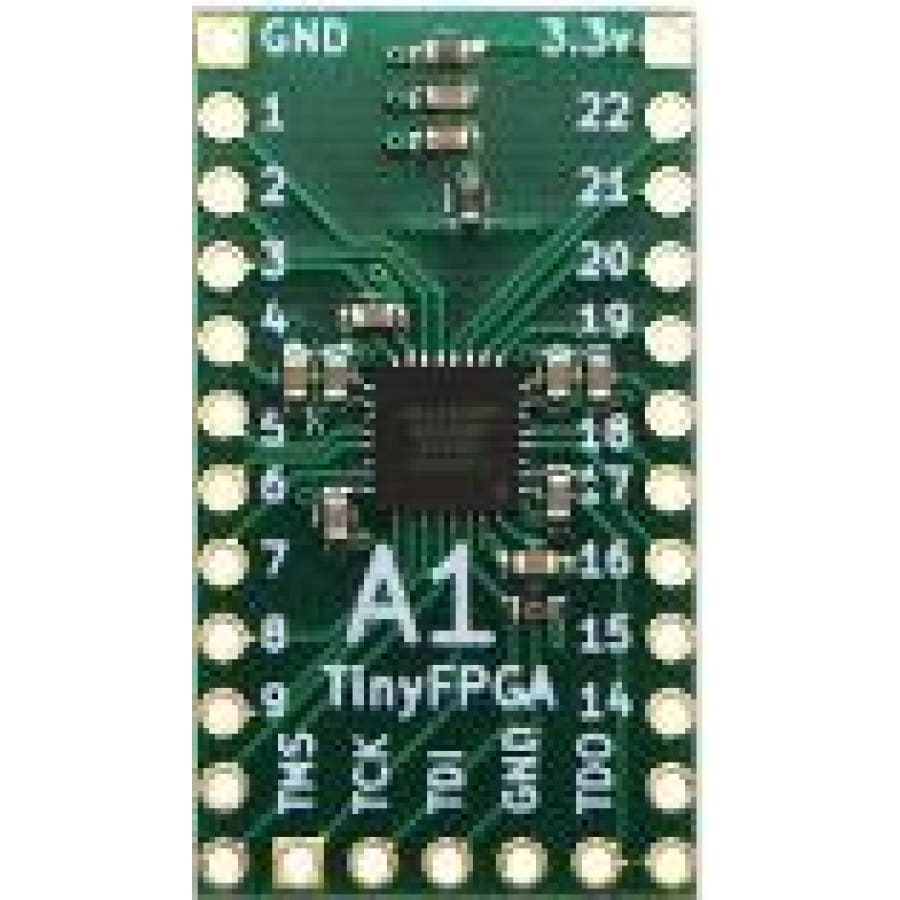

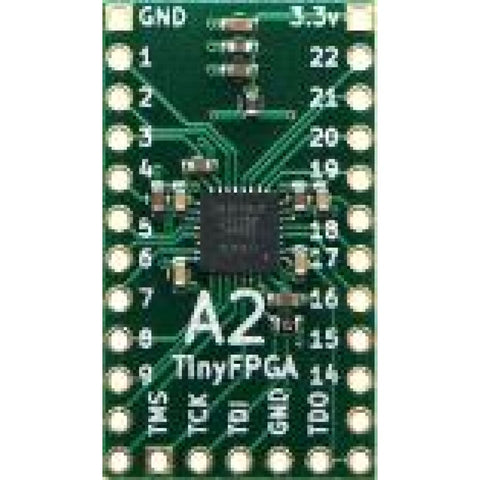

FPGA Chip              XO2-256    XO2-1200ICE40LP8K
Programming InterfaceJTAGJTAGUSB
Logic Cells25612007680
Distributed RAM2 KBit10 KBit
Block RAM 64 KBit128 KBit
User Flash 64 KBit6000 KBit
Phase Lock Loops 11
Delay Lock Loops
User IO Pins (dedicated + shared)18 + 418 + 431 + 10
